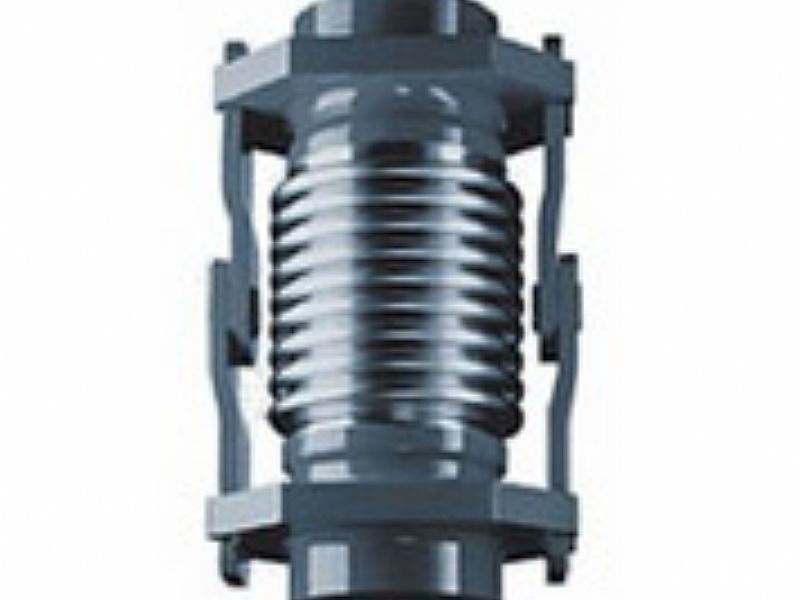

旁通压力平衡式波纹管膨胀节
旁通压力平衡式波纹管膨胀节
旁通压力平衡式波纹管膨胀节性能特点：
分为单式旁通压力平衡式波纹膨胀节和复式旁通压力平衡式波纹膨胀节，采用同一种规格的波纹管，体积小、成本低、导向性好，稳定性好。主要用于吸收轴向位移并能平衡波纹管的压力推力，内压推力载荷由自身构件平衡、承受，用于不允许有较大推力的场合。
旁通压力平衡式波纹管膨胀节应用范围： 主要用于不需设置固定支架的场合，能有效保护设备和管线不变形。
|
公称通径 DN mm |
总波数 n |
n1/2n2 n1大管波数 n2小管波数 |
压力等级Mpa |
径向外形尺寸 mm |
压力对应的产品长度Lmm |
|||||
|
0.25 |
0.6 |
接管J型 |
法兰F型 |
|||||||
|
轴向补偿量mm |
轴向刚度N/mm |
0.25Mpa |
0.6Mpa |
0.25Mpa |
0.6Mpa |
0.25Mpa |
0.6Mpa |
|||
|
600 |
12 |
4/8 |
82/1050 |
53/4410 |
1173 |
600 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
123/700 |
80/2940 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
165/525 |
106/2220 |
2700 |
2950 |
2724 |
2974 |
|||
|
700 |
12 |
4/8 |
82/1347 |
54/4945 |
1331 |
700 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
123/898 |
80/3297 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
163/674 |
108/2473 |
2700 |
2950 |
2724 |
2974 |
|||
|
800 |
12 |
4/8 |
98/1003 |
45/7228 |
1474 |
800 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
146/668 |
68/4819 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
195/501 |
90/3614 |
2700 |
2950 |
2724 |
2974 |
|||
|
900 |
12 |
4/8 |
106/1075 |
55/4628 |
1634 |
900 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
159/716 |
83/3085 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
212/537 |
110/2314 |
2700 |
2950 |
2724 |
2974 |
|||
|
1000 |
12 |
4/8 |
108/1136 |
54/5042 |
1808 |
1000 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
162/758 |
82/3362 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
215/568 |
108/2521 |
2700 |
2950 |
2724 |
2974 |
|||
|
1100 |
12 |
4/8 |
102/1404 |
67/3880 |
2016 |
1986 |
2100 |
2440 |
2124 |
2464 |
|
18 |
6/12 |
154/936 |
100/2990 |
2450 |
2750 |
2474 |
2774 |
|||
|
24 |
8/16 |
205/702 |
124/1940 |
2900 |
3110 |
2924 |
3134 |
|||
|
1200 |
12 |
4/8 |
110/1246 |
60/5062 |
2170 |
2130 |
2100 |
2440 |
2124 |
2464 |
|
18 |
6/12 |
165/831 |
89/3375 |
2450 |
2750 |
2474 |
2774 |
|||
|
24 |
8/16 |
220/623 |
120/2531 |
2900 |
3110 |
2924 |
3134 |
|||
|
1300 |
12 |
4/8 |
116/1237 |
68/5475 |
2316 |
2266 |
2100 |
2450 |
2124 |
2464 |
|
18 |
6/12 |
174/824 |
102/3650 |
2450 |
2840 |
2474 |
2774 |
|||
|
24 |
8/16 |
232/618 |
136/2738 |
2900 |
3230 |
2924 |
3134 |
|||
|
1400 |
12 |
4/8 |
115/1295 |
68/5722 |
2430 |
2380 |
2100 |
2460 |
2124 |
2464 |
|
18 |
6/12 |
172/863 |
102/3815 |
2450 |
2850 |
2474 |
2774 |
|||
|
24 |
8/16 |
230/647 |
136/2861 |
2900 |
3240 |
2924 |
3134 |
|||
|
1500 |
12 |
4/8 |
105/1772 |
46/8695 |
2576 |
2530 |
2100 |
2460 |
2124 |
2464 |
|
18 |
6/12 |
158/1132 |
69/5730 |
2450 |
2850 |
2474 |
2774 |
|||
|
24 |
8/16 |
211/886 |
92/4298 |
2900 |
3240 |
2924 |
3134 |
|||
